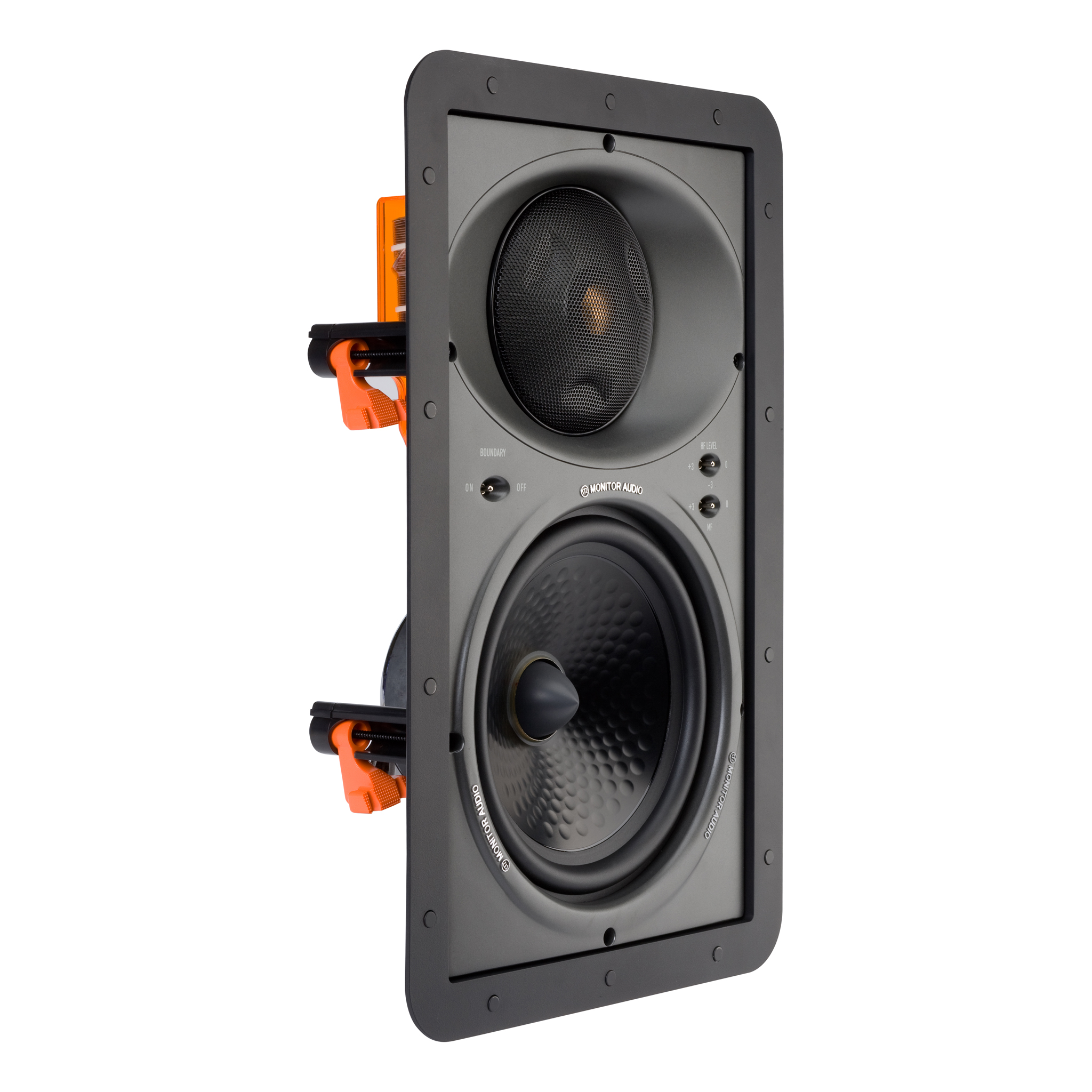

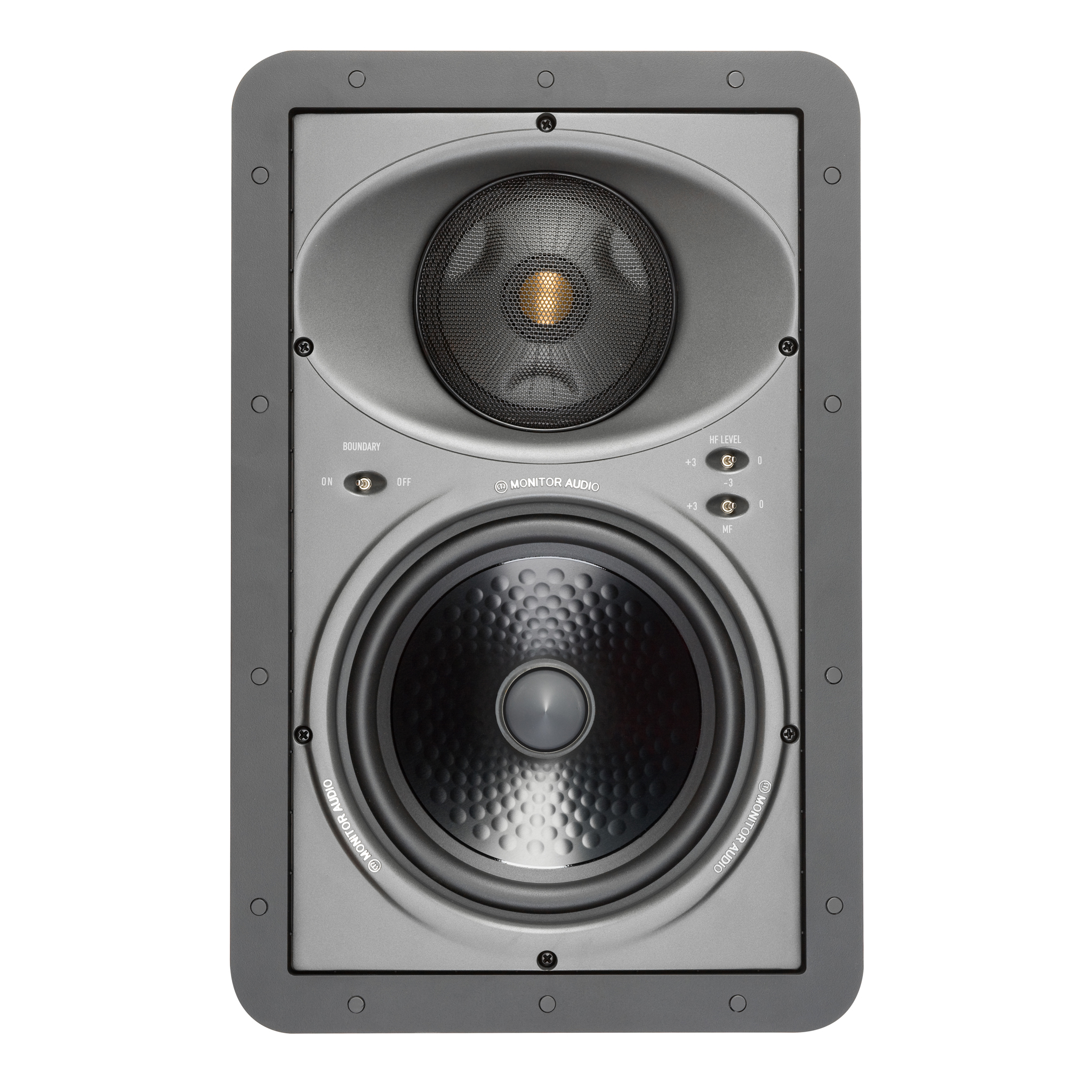

Configured with an 8-inch C-CAM RST bass driver and a pivoting IDC module, housing a 4-inch C-CAM RST inverted midrange driver and a 1-inch C-CAM Gold Dome tweeter. True 3-way design provides rich midrange detail, higher system output, greater power handling, and superior vocal intelligibility and sound localisation. Optimum imaging and set-up are established via the pivoting IDC, high frequency (+3 dB /0 dB / -3 dB) level adjustment, and boundary compensation (on / off) controls.
Products specifications
|
Product Type
|
In-Wall |
|
Performance Level
|
4 |
|
Power Handling
|
40 – 150 W |
|
X-Way
|
3-Way |
|
Frequency Response
|
45 Hz – 30 kHz |
|
Impedence
|
6 Ohms |
|
Sensitivity
|
90db |
|
Diameter
|
N/A |
|
Cut-Out Dimension
|
15.25 x 9.1875 |
|
Bracket
|
WB8 |
|
Length
|
11.31" |
|
Width
|
3.68" |
|
Height
|
17.37" |
|
Weight
|
9.00lbs |
|
Tweeter Type
|
C-Cam Gold Dome |
|
Tweeter Size
|
1" |
|
Midrange Type
|
C-CAM |
|
Midrange Size
|
4" |
|
Woofer Type
|
C-CAM |
|
Woofer Size
|
8" |
|
Bass Alignment
|
Infinite Baffle |
|

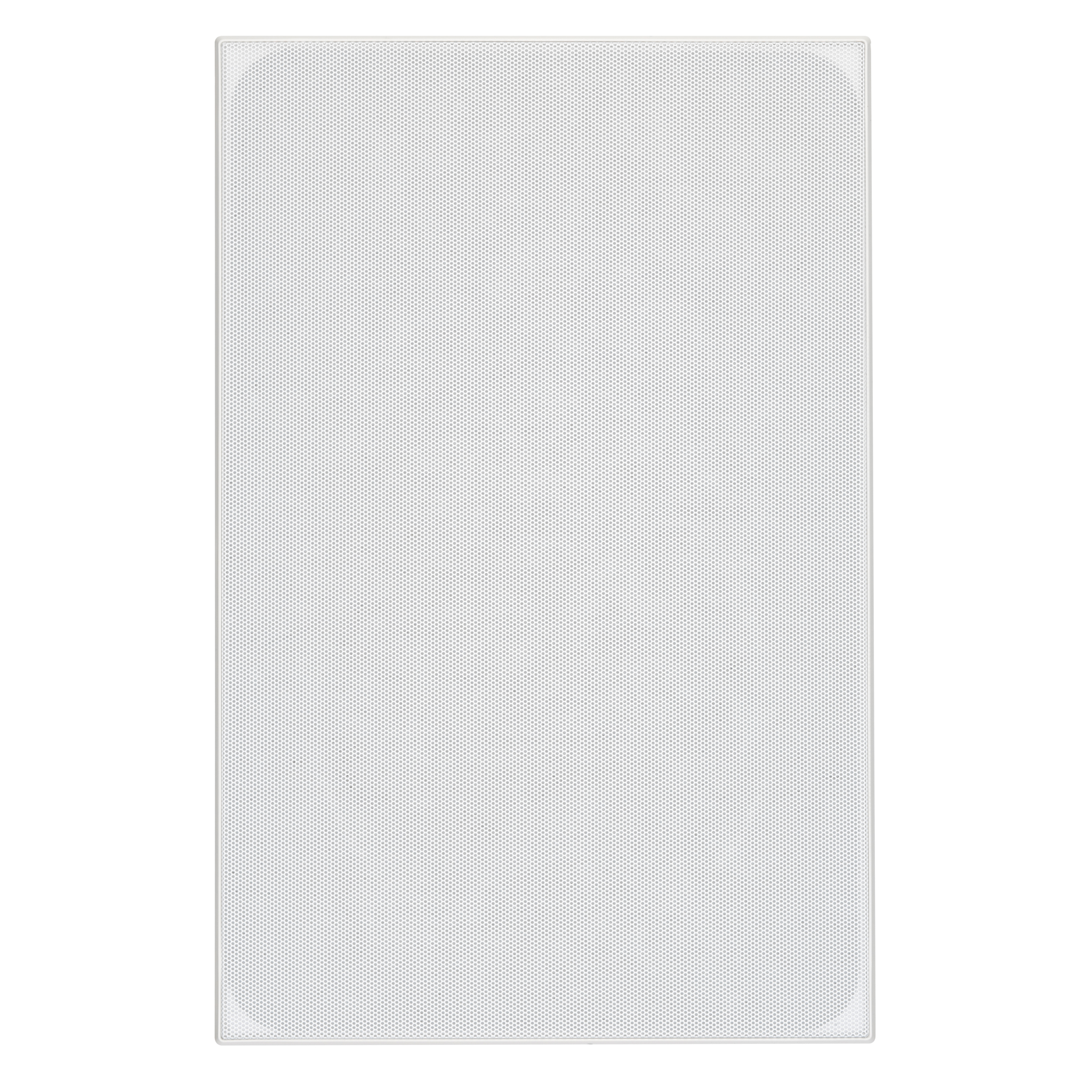

Finish
|
White Grilles |
