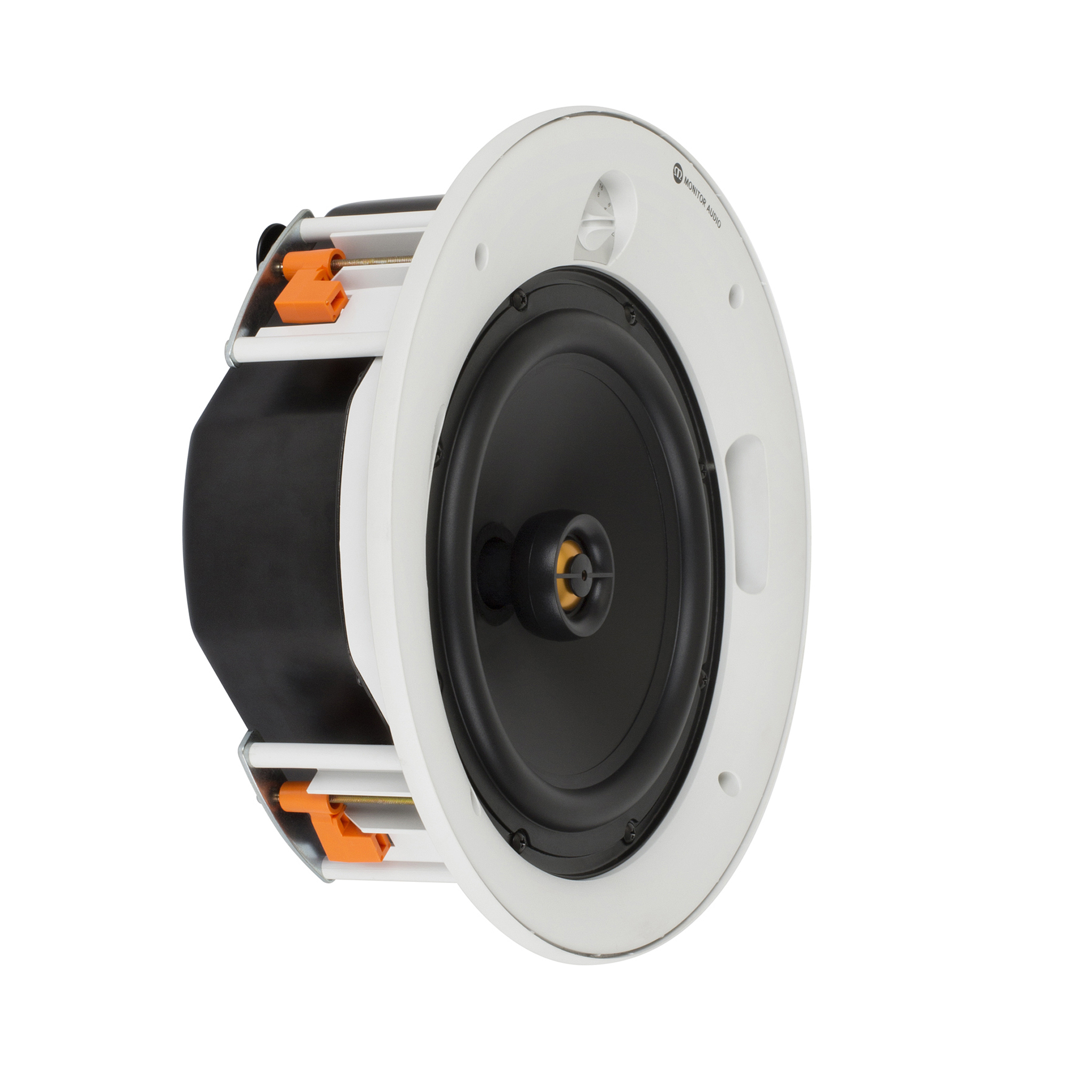

Joining the PRO-65 and PRO-80 in the expanded PRO-IC range, the new professional PRO-80LV 70/100 V line speaker offers similarly stealthy but highly flexible system options for commercial installations.

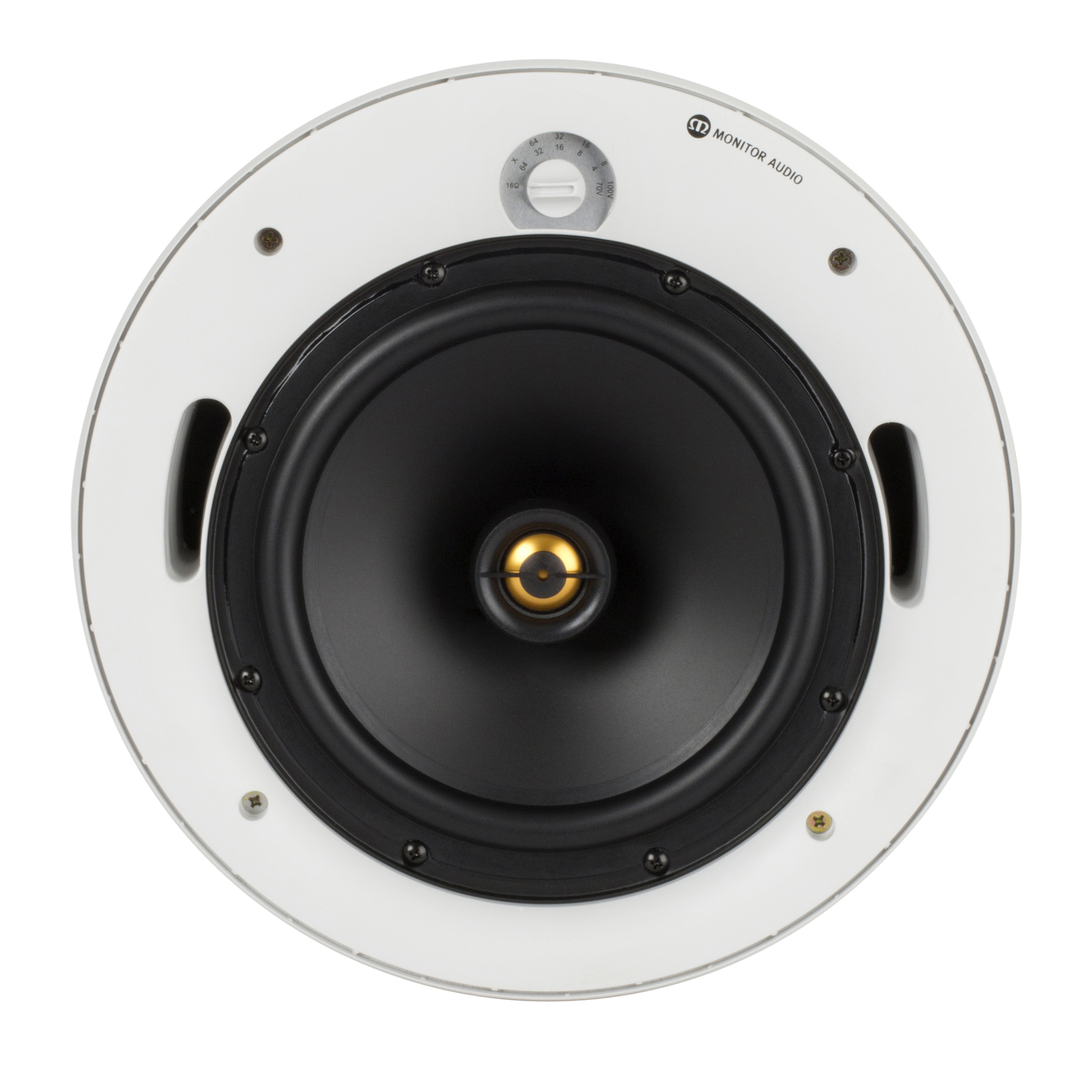

Reprising many of Monitor Audio’s most acclaimed hi fi design configurations, its 8 MMP II bass driver and signature 1 Gold Dome tweeter deliver high audio quality with excellent speech intelligibility for public address and distributed music applications. The PRO-80LV features an internal matching transformer, providing a 70 V or 100 V input for powering multiple speakers on a single amplifier channel. A 16 ohm switch position offers the flexibility to wire one, two, three or four speakers in parallel per channel. Power taps allow system designers to set maximum SPL in areas such as restrooms and foyers.

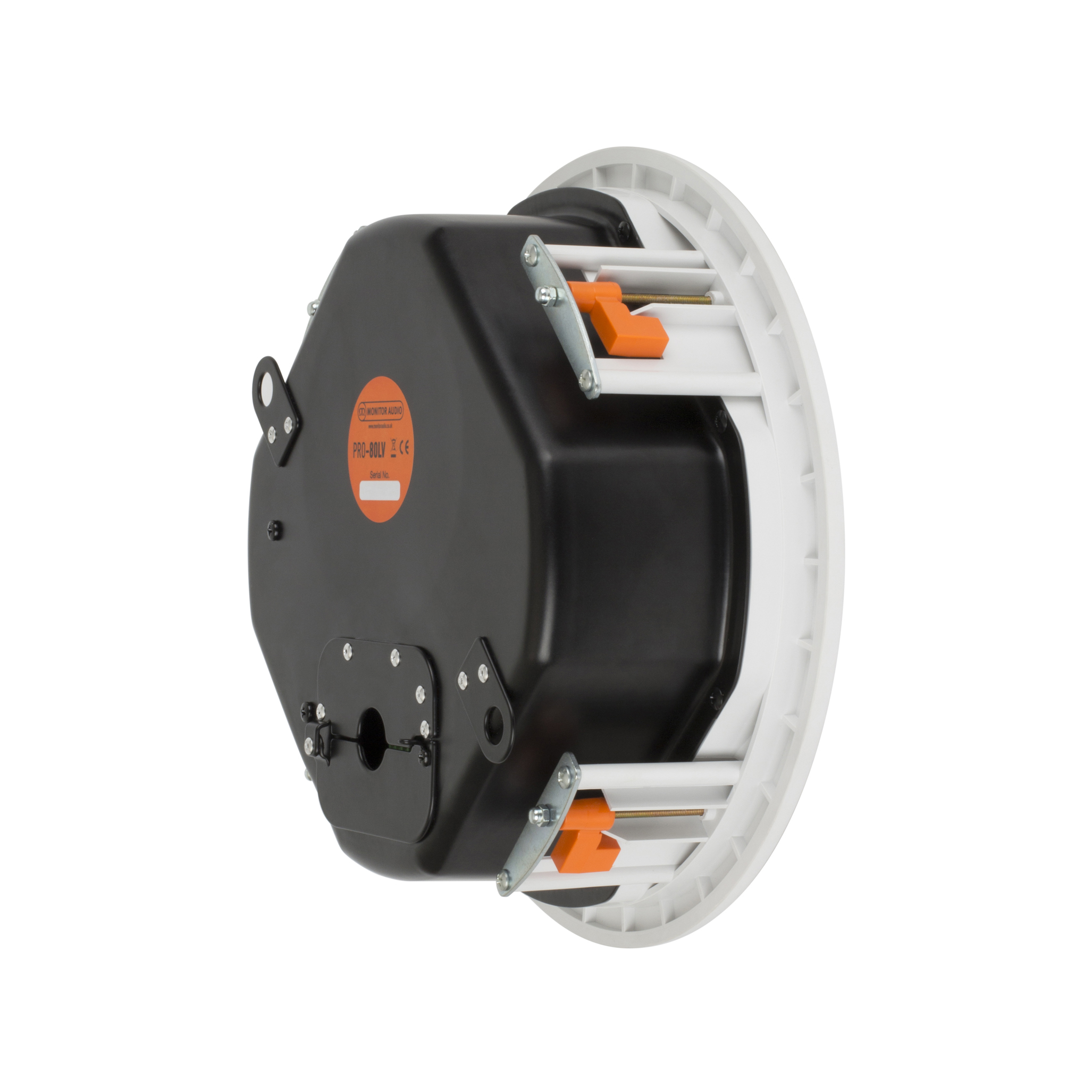

Building regulations are satisfied by the Pro-80LV’s fireproof steel back box and secure anchor points while a plug-type connection block ensures easy and reliable system integration with a link out option for ‘daisy chain’ wiring. Combining installation versatility with Monitor Audio’s robust build quality and hi-fi clarity, the slender new Pro-80LV offers the added advantage of trimless aesthetics for an optimum blend of design, performance and value.
Products specifications
Product Type
|
In-Ceiling |
Performance Level
|
2 |
Power Handling
|
10 — 40 W @16ohms |
X-Way
|
2-way |
Frequency Response
|
65 Hz – 25 kHz |
Impedence
|
N/A |
Diameter
|
11.57" |
Cut-Out Dimension
|
10.4724 |
Bracket
|
106 |
Length
|
N/A |
Width
|
3.98" |
Height
|
N/A |
Weight
|
9.50lbs |
Tweeter Type
|
C-CAM |
Tweeter Size
|
1 |
Midrange Type
|
N/A |
Midrange Size
|
N/A |
Woofer Type
|
MMP II |
Woofer Size
|
8 |
Bass Alignment
|
Ported |
Finish
|
White Grilles |
